Cellular Telemetry Products

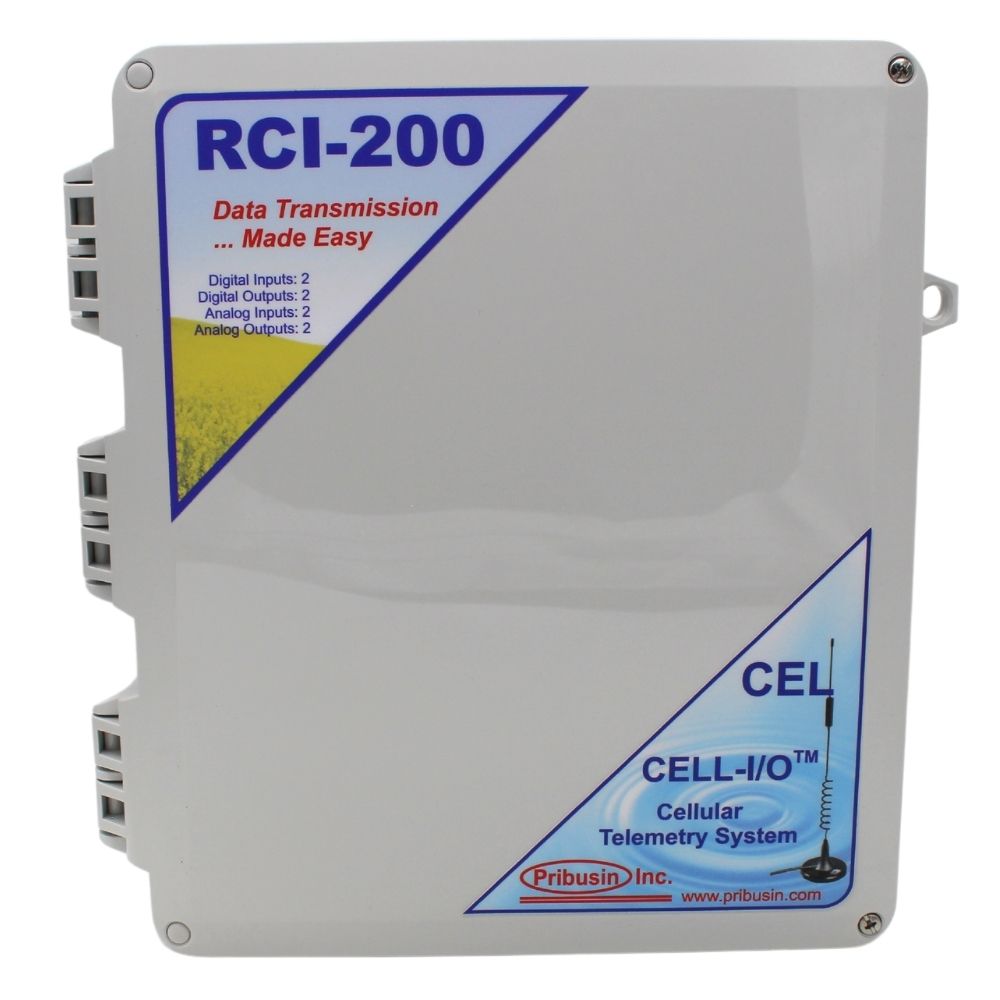

RCI-200-CEL: Cellular Remote Control Signal Interface
Key Features:
- Bi-directional Communication using Cellular Network
- Point-to-Point or Host-to-Multi-Point Operation
- 2 Dry Contacts and 2 Analog Inputs
- 2 'C' Relay Contacts and 2 Analog Outputs
- Low monthly data fees with SIM cards
- No Calibration Required
- Power: 117 VAC 50/60 Hz (Optional 24 VDC)
- High Noise Rejection
Function:
Connection:
Units require an active cellular connection and must be provisioned through Pribusin Inc’s cellular data service. At this time Pribusin does not offer provisioning with local cellular providers.
Specifications:
- Transmission Medium: GPRS or CDMA Cellular Network
- Operating Temperature: -20 Deg.C. to +50 Deg.C
- Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
- Power: 117 VAC, 60/50 Hz (24VDC Available)
- Enclosure: NEMA4X (NEMA12 available as an option)
RCI-400-CEL: Cellular Remote Control Signal Interface
Key Features:
- Bi-directional Communication using Cellular Network
- Point-to-Point or Host-to-Multi-Point Operation
- 2 Dry Contacts and 2 Analog Inputs
- 2 'C' Relay Contacts and 2 Analog Outputs
- Low monthly data fees with SIM cards
- No Calibration Required
- Power: 117 VAC 50/60 Hz (Optional 24 VDC)
- High Noise Rejection
Function:
The RCI-400-CEL is a bi-directional cellular communication system that exchanges the status of 4 dry contact inputs and 4 analog inputs between a host and remote unit or a host unit and several remote units. A basic system consists of one host station and one or more remote stations.
Connection:
Units require an active cellular connection and must be provisioned through Pribusin Inc’s cellular data service. At this time Pribusin does not offer provisioning with local cellular providers.
Specifications:
- Transmission Medium: GPRS or CDMA Cellular Network
- BAUD Rate: 115200 BAUD
- Operating Temperature: -20 Deg.C. to +50 Deg.C
- Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
- Power: 117 VAC, 60/50 Hz (24VDC Available)
- Enclosure: NEMA4X (NEMA12 available as an option)
- Approvals: ETL 3118354: UL 60950-1-2007; CSA=C22.2 No. 60950-1-07
RCI-800-CEL: Cellular Remote Control Signal Interface
Key Features:
- Bi-directional Communication using Cellular Network
- Point-to-Point or Host-to-Multi-Point Operation
- 2 Dry Contacts and 2 Analog Inputs
- 2 'C' Relay Contacts and 2 Analog Outputs
- Low monthly data fees with SIM cards
- No Calibration Required
- Power: 117 VAC 50/60 Hz (Optional 24 VDC)
- High Noise Rejection
Function:
Connection:
Units require an active cellular connection and must be provisioned through Pribusin Inc’s cellular data service. At this time Pribusin does not offer provisioning with local cellular providers.
Specifications:
- Transmission Medium: GPRS or CDMA Cellular Network
- BAUD Rate: 115200 BAUD
- Operating Temperature: -20 Deg.C. to +50 Deg.C
- Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
- Power: 117 VAC, 60/50 Hz (24VDC Available)
- Enclosure: NEMA4X (NEMA12 available as an option)
- Approvals: ETL 3118354: UL 60950-1-2007; CSA=C22.2 No. 60950-1-07
